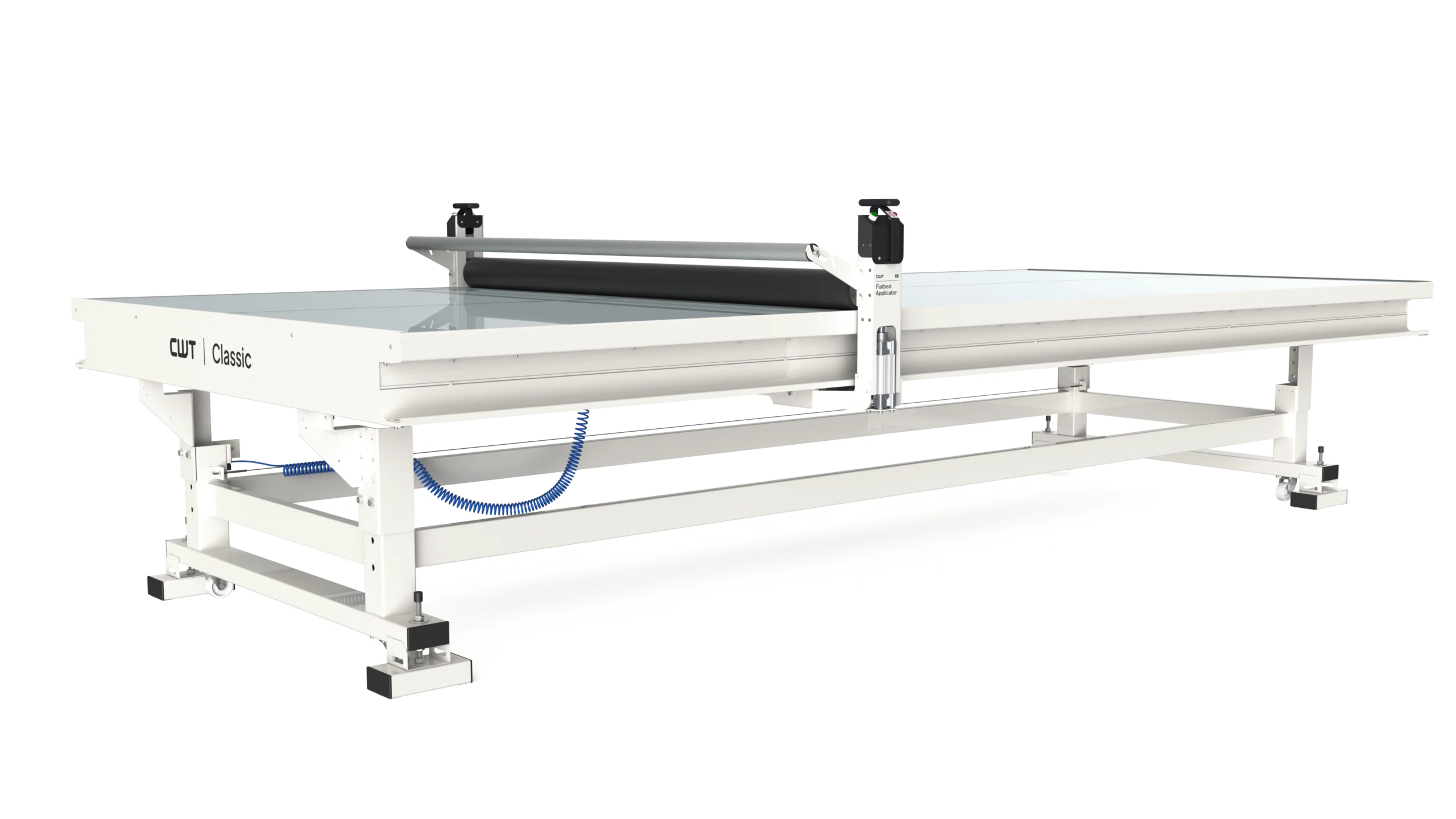

CWT 2147 Regular Flatbed Applicator
Our widest flatbed applicator. The Regular-series, our most popular and original classic model has become an industry favorite among signmakers and digital printers. It is a robust production machine built for uninterrupted long shifts, equipped with all the essential features, high production capacity, and a worktable that accommodates a wide range of standard substrates and media widths available on the market.
Facts & Features
Facts
Part NO
CWT 214710
Table length
4700mm (15ft.in.)
Table width
2100mm (6ft. 1in.)
Length of working area
4260mm (13ft. 12in.)
Width of working area/roller
2050mm (6ft. 9in.)
Overall width
2330mm (7ft. 8in.)
Overall height
1620mm (5ft. 4in.)
Max thickness of substrate
0-70mm (0-2.8in.)
Work height
744-950mm (2ft. 5in. - 3ft. 1in.)
Work height adjustement
Manual
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
696kg (1535lbs)
Gross weight
900kg (1984lbs)
Packing dimensions
4940 x 550 x 2400mm (16ft. 3in. x 22in. x 7ft. 6in.)
Warranty
3 years
Features
CUTTING MAT, SELF HEALING
Yes
CWT LIGHT, ILLUMINATED WORKTABLE
Option
ROLL HOLDER FOR GLIDE BEAM
Yes
LOWER ROLL HOLDER
Option
ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP
Option
SIDE POCKETS
Yes
CWT CUT
Option
SILENT COMPRESSOR
Option
COMPRESSOR SHELF FOR 1700 SERIES
Option
Documents
CWT_DataSheet_2147_Regular
