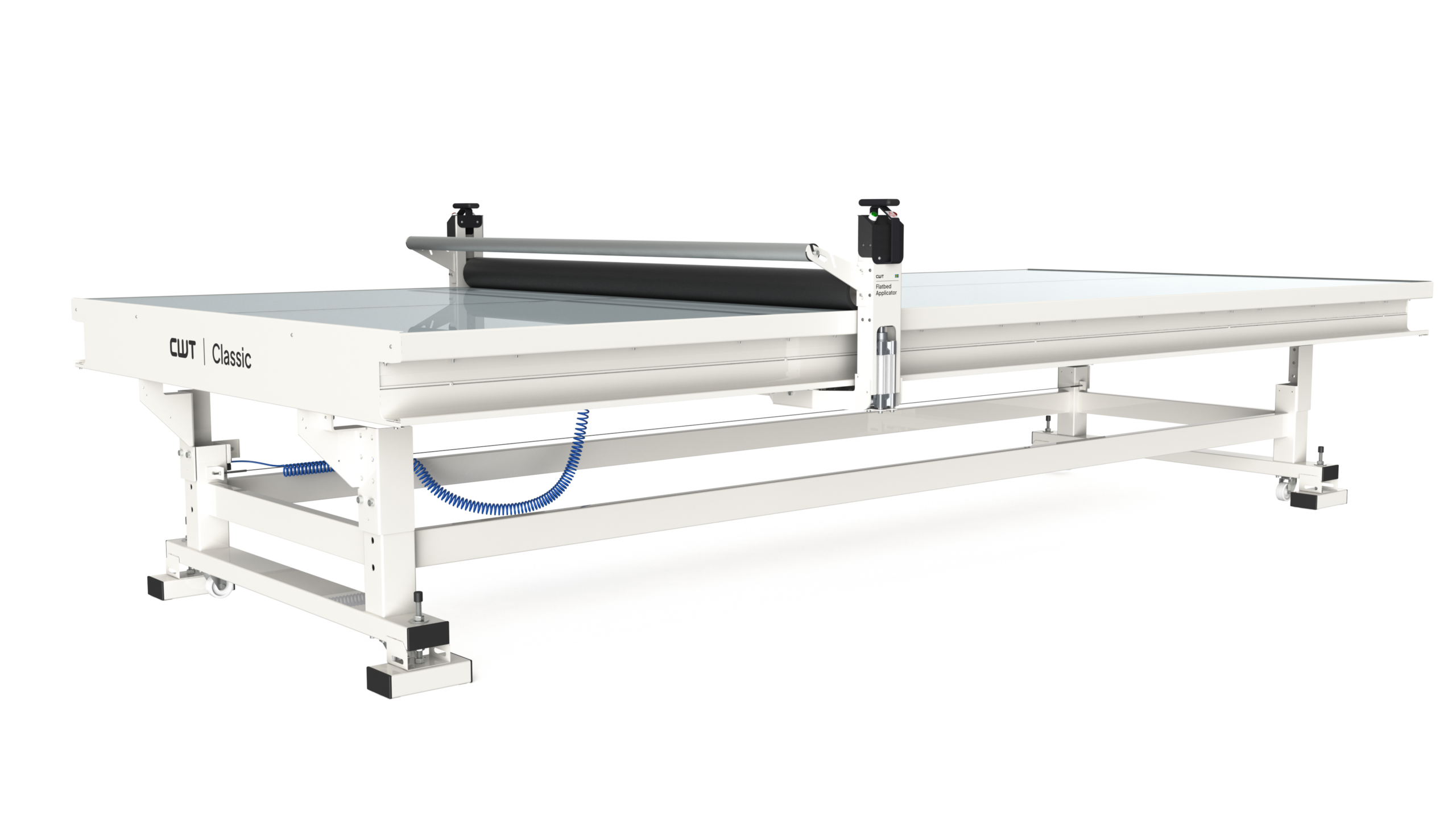

CWT 2147 Classic Flatbed Applicator

Our widest flatbed applicator and the industry favourite for everyday sign production. The CWT Classic Series is our original, proven flatbed applicator – a trusted choice for sign makers, digital printers, car wrappers and road sign manufacturers. Built for steady, everyday production, it delivers reliable performance and a smooth workflow at a low to mid-range budget. With a selectable pre-set working height, an optional LED light table and flat-packed delivery for easy installation, the Classic Series offers the dependable, ergonomic and user-focused design that has made it an industry favourite for busy print and sign shops.

Build yours

Facts & Features

Facts
Part NO
CWT 214710
Table length
4720mm (15ft. 6in.)
Table width
2100mm (6ft. 1in.)
Length of working area
4270mm (13ft. 12in.)
Width of working area/roller
2050mm (6ft. 9in.)
Overall width
2330mm (7ft. 8in.)
Overall height
1620mm (5ft. 4in.)
Max thickness of substrate
0-70mm (0-2.8in.)
Work height
744-950mm (2ft. 5in. - 3ft. 1in.)
Work height adjustement
Manual
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
696kg (1535lbs)
Gross weight
900kg (1984lbs)
Packing dimensions
4940 x 550 x 2400mm (16ft. 3in. x 22in. x 7ft. 6in.)
Warranty
3 years

Features

CUTTING MAT, SELF HEALING

Yes

CWT LIGHT, ILLUMINATED WORKTABLE

Option

ROLL HOLDER FOR GLIDE BEAM

Yes

LOWER ROLL HOLDER

Option

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

SIDE POCKETS

Yes

CWT CUT

Option

SILENT COMPRESSOR

Option

COMPRESSOR SHELF FOR 1700 SERIES

Option
Documents
Solid gray color

Data Sheet CWT 2147 Classic v.2025-10-1
