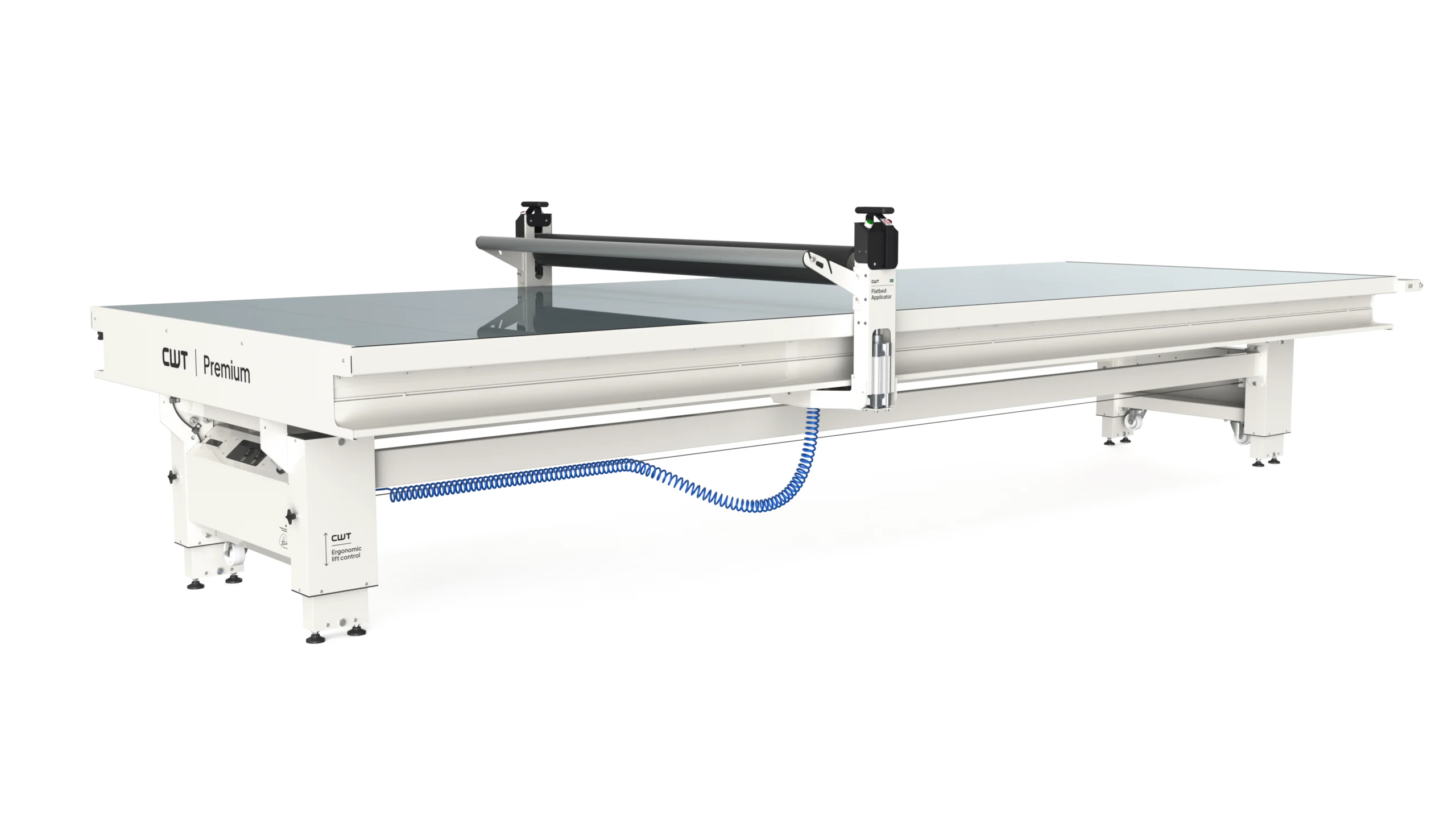

CWT 1747 Premium Flatbed Applicator

Our most popular and original classic model has been updated to new standards. Introducing our latest flatbed applicator, a robust production machine designed for uninterrupted long shifts. Equipped with essential features such as a light table, electronic height adjustment, and an integrated cutting solution, it offers high production capacity and a worktable that accommodates a wide range of standard substrates and media widths available on the market.

Facts & Features

Facts
Part NO
CWT1747-02
Table length
4 720mm (15ft. 5 in.)
Table width
1720mm (5ft. 8in.)
Length of working area
4 270mm (14ft.)
Width of working area/roller
1650mm (5ft. 5in.)
Overall width
2045mm (6ft. 9in.)
Max thickness of substrate
0-70mm (0-2.7in.)
Work height
750-900mm (2ft. 5in. - 2ft. 11in.)
Work height adjustement
Electronic
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
615kg (1356lbs)
Gross weight
795kg (1753lbs)
Packing dimensions
4940 x 560 x 2100mm (16ft. 3in. x 1ft. 10in. x 6ft. 11in.)
Warranty
3 years

Features

CWT LIGHT, ILLUMINATED WORKTABLE

Yes

CWT LIFT, ELECTRONIC WORK HEIGHT ADJUSTMENT

Yes

ROLL HOLDER FOR BED END

Yes

ROLL HOLDER FOR GLIDE BEAM

Yes

SIDE POCKETS

Yes

PRO SHAFT 1700

Option

CWT CUT

Option

SILENT COMPRESSOR

Option

COMPRESSOR SHELF FOR 1700 SERIES

Option

CUTTER BENCH FOR 1700 SERIES

Option

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

LOWER ROLL HOLDER

Option
