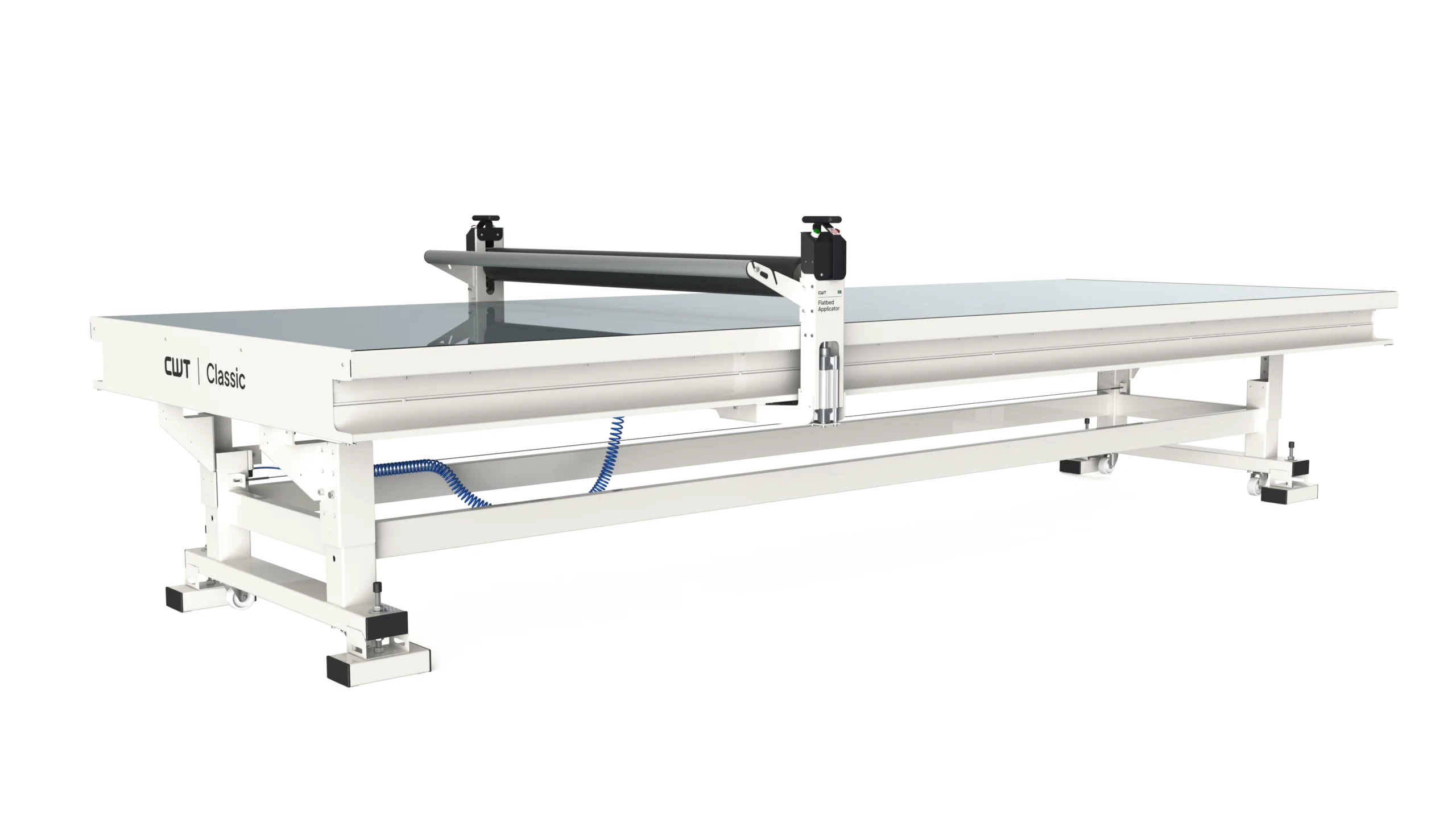

CWT 1747 Classic Flatbed Applicator

The industry favourite for everyday sign production The CWT Classic Series is our original, proven flatbed applicator – a trusted choice for sign makers, digital printers, car wrappers and road sign manufacturers. Built for steady, everyday production, it delivers reliable performance and a smooth workflow at a low to mid-range budget. With a selectable pre-set working height, an optional LED light table and flat-packed delivery for easy installation, the Classic Series offers the dependable, ergonomic and user-focused design that has made it an industry favourite for busy print and sign shops.

Build yours

Facts & Features

Facts
Part NO
CWT1747-00
Table length
4720mm (15ft. 5 in.)
Table width
1720mm (5ft. 8in.)
Length of working area
4270mm (14ft.)
Width of working area/roller
1650mm (5ft. 5in.)
Overall width
2045mm (6ft. 9in.)
Max thickness of substrate
0-70mm (0-2.7in.)
Work height
744-950mm (2ft.5in. - 3ft.1in.)
Work height adjustement
Manual - 4 steps
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
585kg (1290lbs)
Gross weight
765kg (1687lbs)
Packing dimensions
4900 x 560 x 2100mm (16ft. 1in. x 1ft. 10in. x 6ft. 11in.)
Warranty
3 years

Features

ROLL HOLDER FOR GLIDE BEAM

Yes

SIDE POCKETS

Yes

CWT LIGHT, ILLUMINATED WORKTABLE

Option

CWT LIFT, ELECTRONIC WORK HEIGHT ADJUSTMENT

Option

ROLL HOLDER FOR BED END

Option

PRO SHAFT 1700

Option

CWT CUT

Option

SILENT COMPRESSOR

Option

COMPRESSOR SHELF FOR 1700 SERIES

Option

CUTTER BENCH FOR 1700 SERIES

Option

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

LOWER ROLL HOLDER

Option
Documents
Solid gray color

Data Sheet CWT 1747 Classic 2026-03
