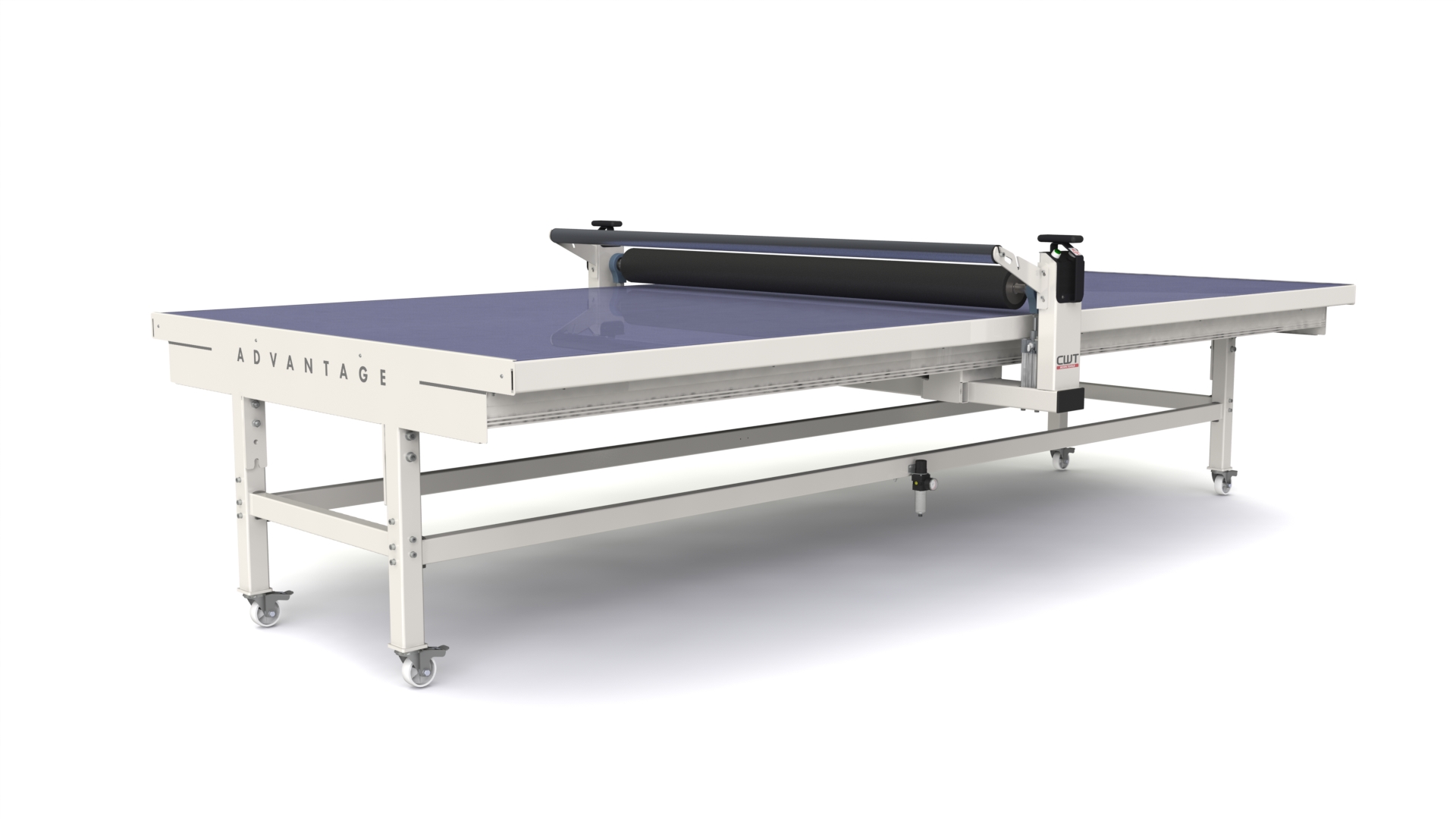

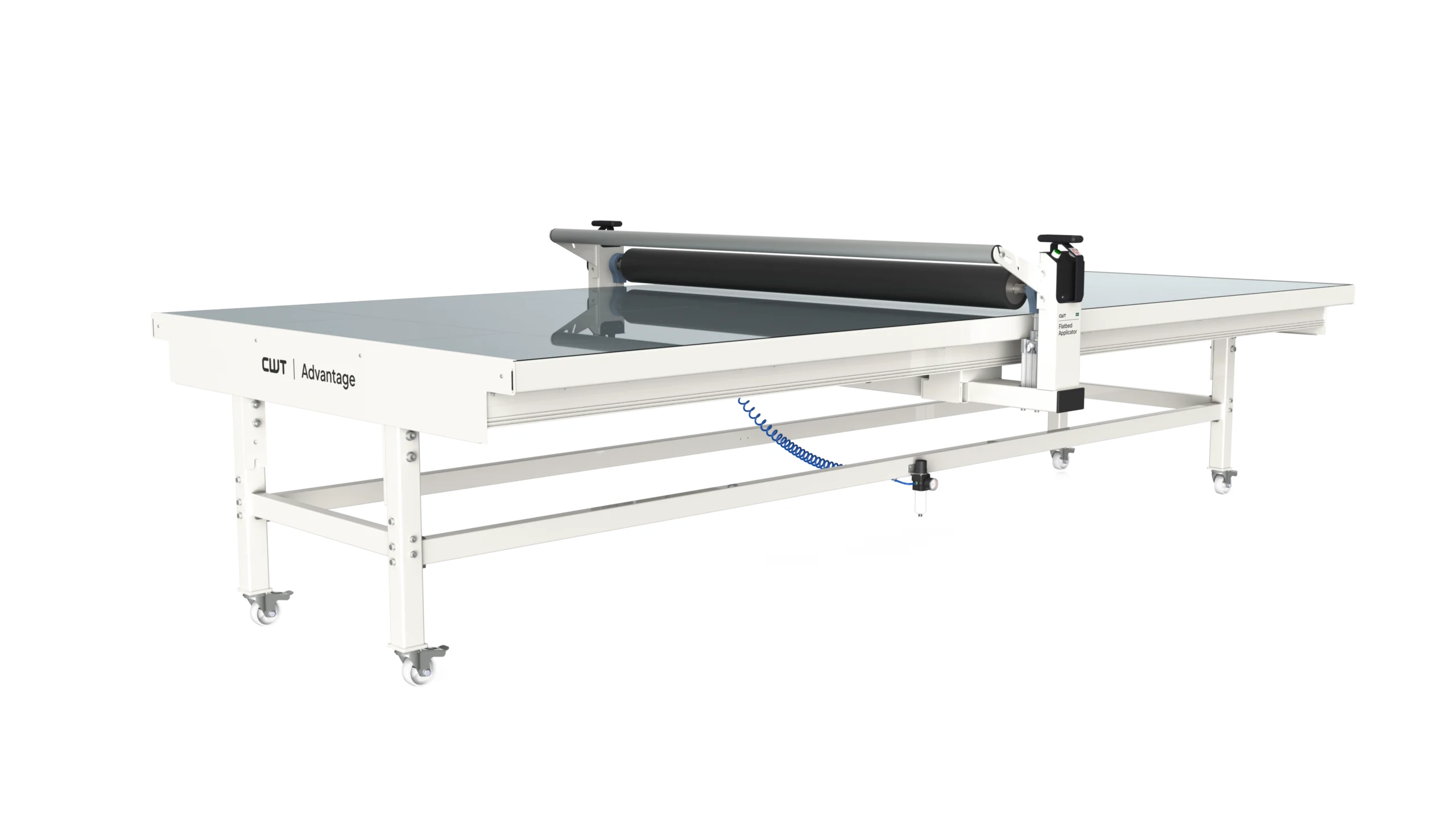

CWT 1736 Advantage Flatbed Applicator
Our 5x10ft flatbed applicator is still a robust production machine built for uninterrupted long shifts. It offers affordable access to flatbed technology and is compact, making it an ideal choice for smaller or narrow spaces. This machine is perfect for producing smaller signs, yard signs, posters and road signs. It comes with casters and CWT Original Cutting Mat as standard features.
Build yours
Facts & Features
Facts
Part NO
CWT173610
Table length
3640mm (11ft. 3in.)
Table width
1720mm (5ft. 8in.)
Length of working area
3368mm (11ft. 1in. )
Width of working area/roller
1650mm (5ft. 5in.)
Overall width
2080mm (6ft. 10in.)
Max thickness of substrate
0-70mm (0-2.8in.)
Work height
820 – 920mm (2ft. 8in. – 3ft.)
Work height adjustement
Manual
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
400kg (881lbs)
Gross weight
500kg (1102lbs)500kg (1102lbs)
Packing dimensions
3775 x 370 x 1950mm (12ft. 5in. x 1ft. 3in. x 6ft. 5in.)
Warranty
3 years
Features
CUTTING MAT, SELF HEALING
Yes
CWT LIGHT, ILLUMINATED WORKTABLE
Option
ROLL HOLDER FOR GLIDE BEAM
Yes
ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP
Option
SILENT COMPRESSOR
Option
CWT CUT
Option
Documents
Data Sheet CWT 1736 Advantage
