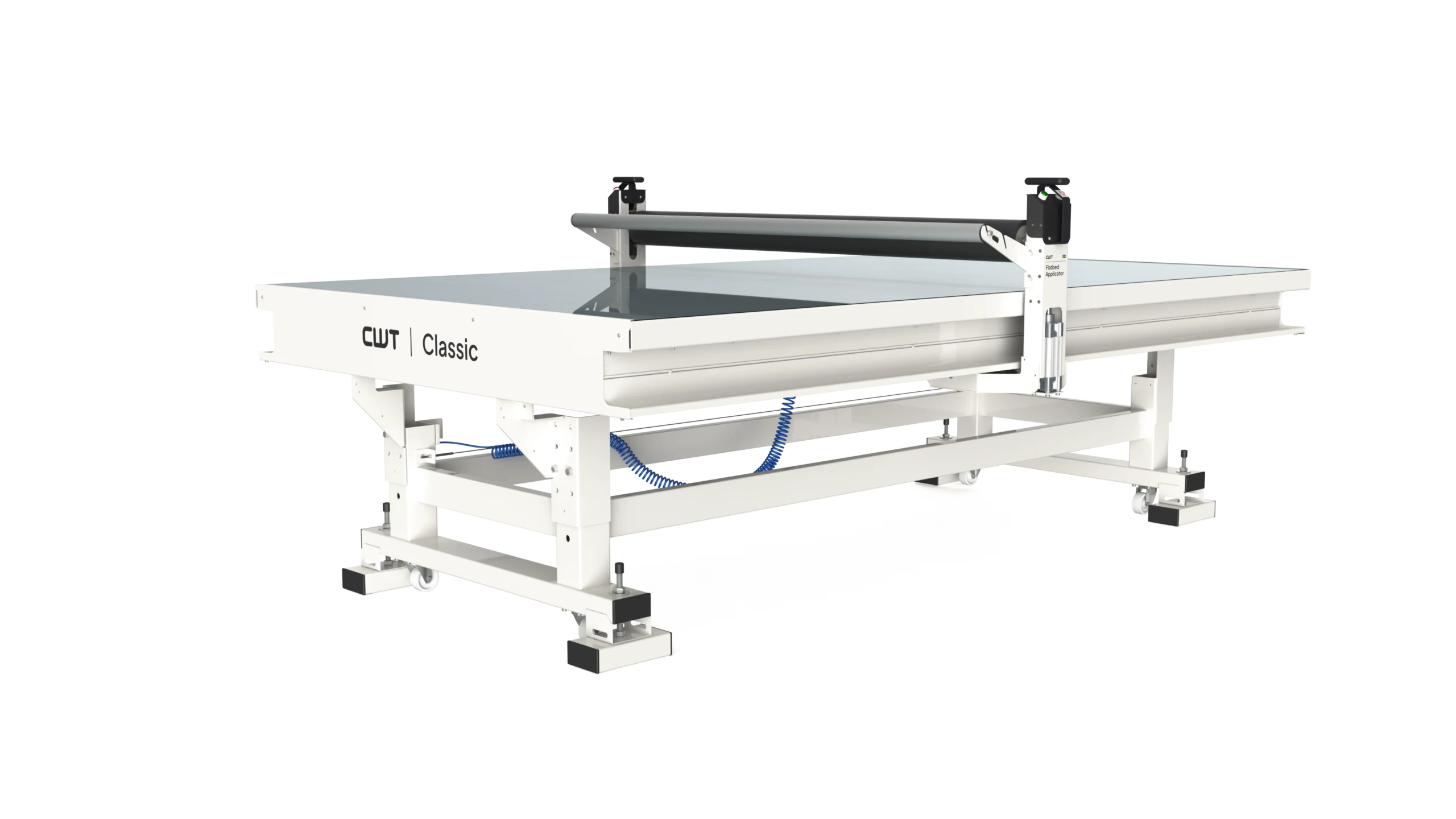

CWT 1730 Regular Flatbed Applicator

Our most popular and original classic model has become an industry favorite among signmakers and digital printers. Regular series is now upgraded to feature a wider working width. It is a robust production machine built for uninterrupted long shifts, equipped with all the essential features, high production capacity, and a worktable that accommodates a wide range of standard substrates and media widths available on the market.

Facts & Features

Facts
Part NO
CWT1730-00
Table length
3000mm (9ft. 10in.)
Table width
1720mm (5ft. 8in.)
Length of working area
2560mm (8ft. 8in.)
Width of working area/roller
1650mm (5ft. 5in.)
Overall width
2045mm (6ft. 9in.)
Max thickness of substrate
0-70mm (0-2.7in.)
Work height
744-950mm (2ft.5in. - 3ft.1in.)
Work height adjustement
Manual - 4 steps
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
410kg (904lbs)
Gross weight
555kg (1224lbs)
Packing dimensions
3400 x 560 x 2100mm (11ft. 2in. x 1ft. 10in. x 6ft. 11in.)
Warranty
3 years

Features

ROLL HOLDER FOR GLIDE BEAM

Yes

SIDE POCKETS

Yes

CWT LIGHT, ILLUMINATED WORKTABLE

Option

CWT LIFT, ELECTRONIC WORK HEIGHT ADJUSTMENT

Option

ROLL HOLDER FOR BED END

Option

PRO SHAFT 1700

Option

CWT CUT

Option

SILENT COMPRESSOR

Option

COMPRESSOR SHELF FOR 1700 SERIES

Option

CUTTER BENCH FOR 1700 SERIES

Option

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

LOWER ROLL HOLDER

Option
Documents
Solid gray color

CWT_DataSheet_1730_Regular
