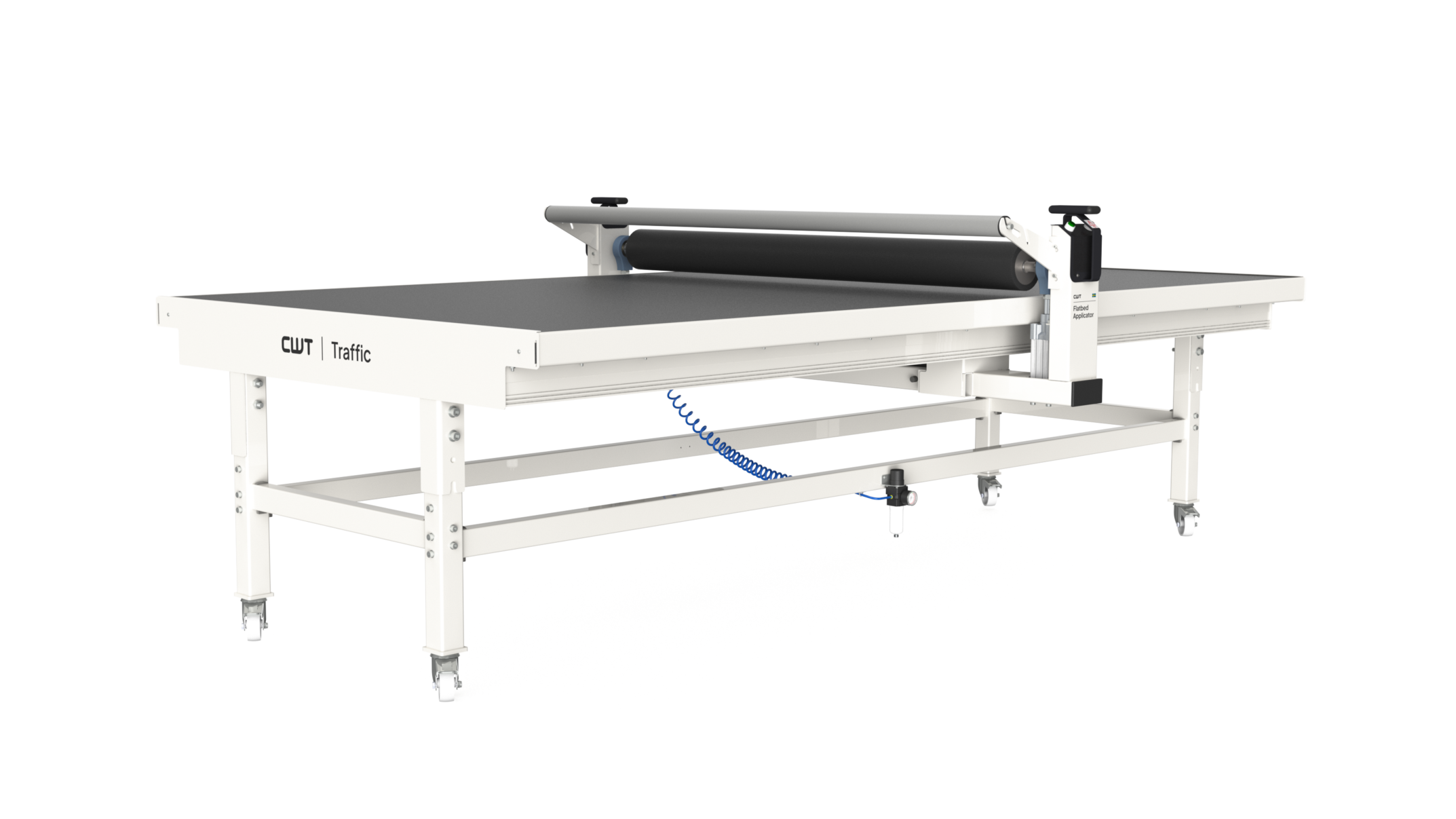

CWT 1428 Traffic

Controlled production for larger traffic sign panels The CWT 1428 Traffic is designed for road sign manufacturers handling medium to larger aluminium and composite panels with increased production demands. Equipped with a seamless, high strength composite work surface, it delivers structural rigidity across the full working area, creating a robust worktable for reflective sheeting and overlay film application. With consistent roller pressure and a controlled application process, it supports repeatable results across operators and production runs. The extended working area makes it well suited for larger regulatory signs and higher volume traffic sign production. Built on the proven CWT flatbed applicator concept and modular system, the 1428 Traffic combines stability, ergonomics and industrial durability for everyday traffic sign production.

Build yours

Facts & Features

Facts
Part NO
CWT142830
Table length
2850mm (9ft. 4in.)
Table width
1450mm (4ft. 9in.)
Length of working area
2570mm (8ft. 5in.)
Width of working area/roller
1400mm (4ft. 7in.)
Overall width
1815mm (5ft. 11in.)
Max thickness of substrate
0-70mm (0-2.8in.)
Work height
795 - 895mm (2ft. 7in. - 2ft. 9in.)
Work height adjustement
Manual
Bed surface
Composite Board
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Packing dimensions
3000 x 380 x 2100mm (9ft. 10in. x 1ft. 3in. x 7ft.)
Warranty
3 years

Features

ROLL HOLDER FOR GLIDE BEAM

Yes

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

SILENT COMPRESSOR

Option
