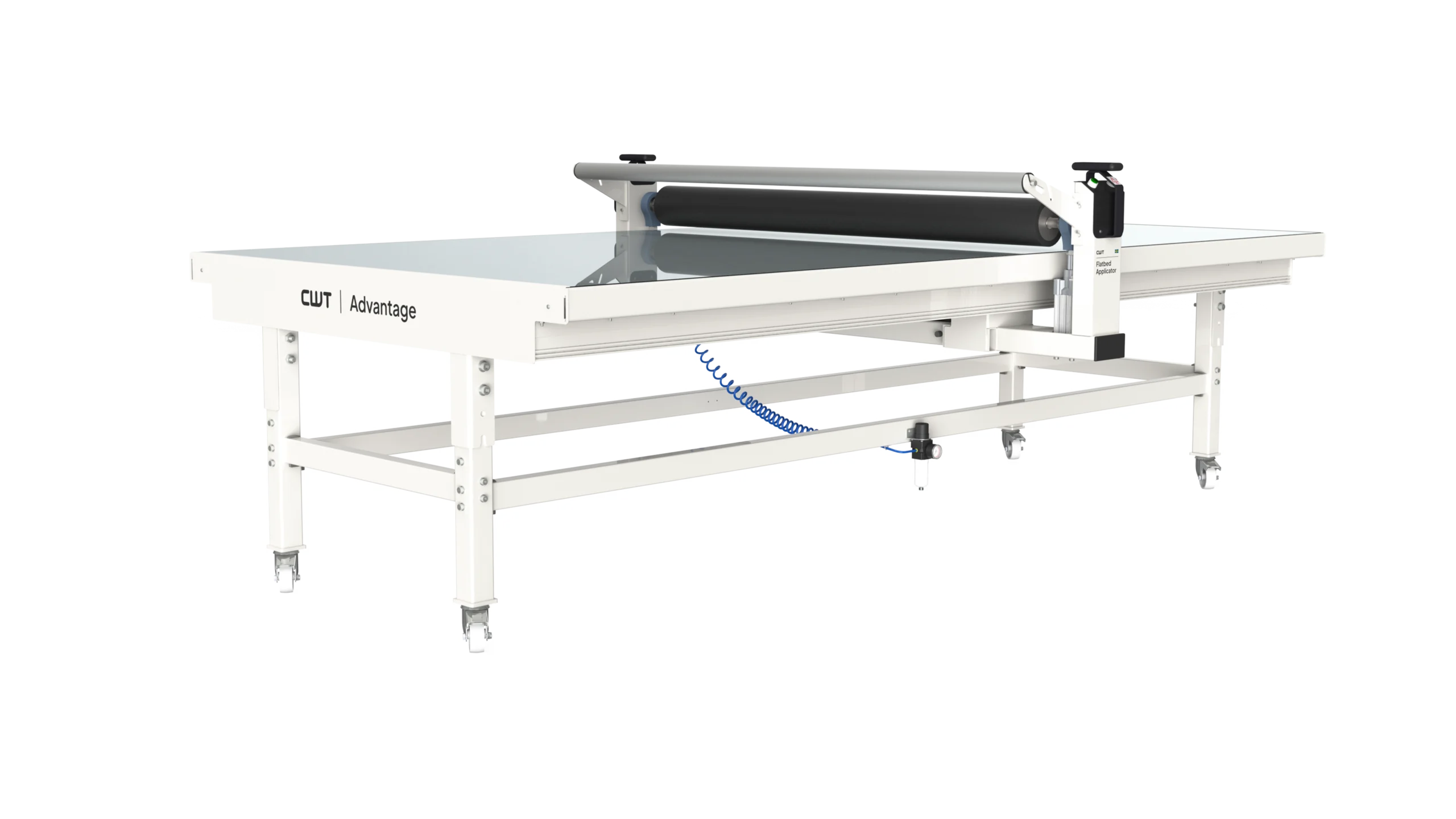

CWT 1428 Advantage Flatbed Applicator Table
Popular sized 4x8 machine, illuminated and easy to install. Most of the Flatbed Applicator advantages at an entry level cost.

Facts & Features

1400mm (4ft. 7in.)
Workspace width
2570mm (8ft. 5in.)
Workspace length
100m2/hr (1080ft2/hr)
Capacity
Facts
Part NO
CWT142810
Capacity up to
100m2/hr (1080ft2/hr)
Table length
2850mm (9ft. 4in.)
Table width
1450mm (4ft. 9in.)
Length of working area
2570mm (8ft. 5in.)
Width of working area/roller
400mm (4ft. 7in.)
Overall width
1815mm (5ft. 11in.)
Work height adjustement
Manual
Bed surface
Tempered safety glass
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air suuply
6-8bar (87-116psi)
Gross weight
400kg (880lbs)
Packing dimensions
3000 x 380 x 2100mm (9ft. 10in. x 1ft. 3in. x 7ft.)
Warranty
3 years
Features
Self-healing Cutting mat
Yes
Tempered glass top
Yes
Casters
Yes
LED illumination
Yes
Silent compressor
Option
