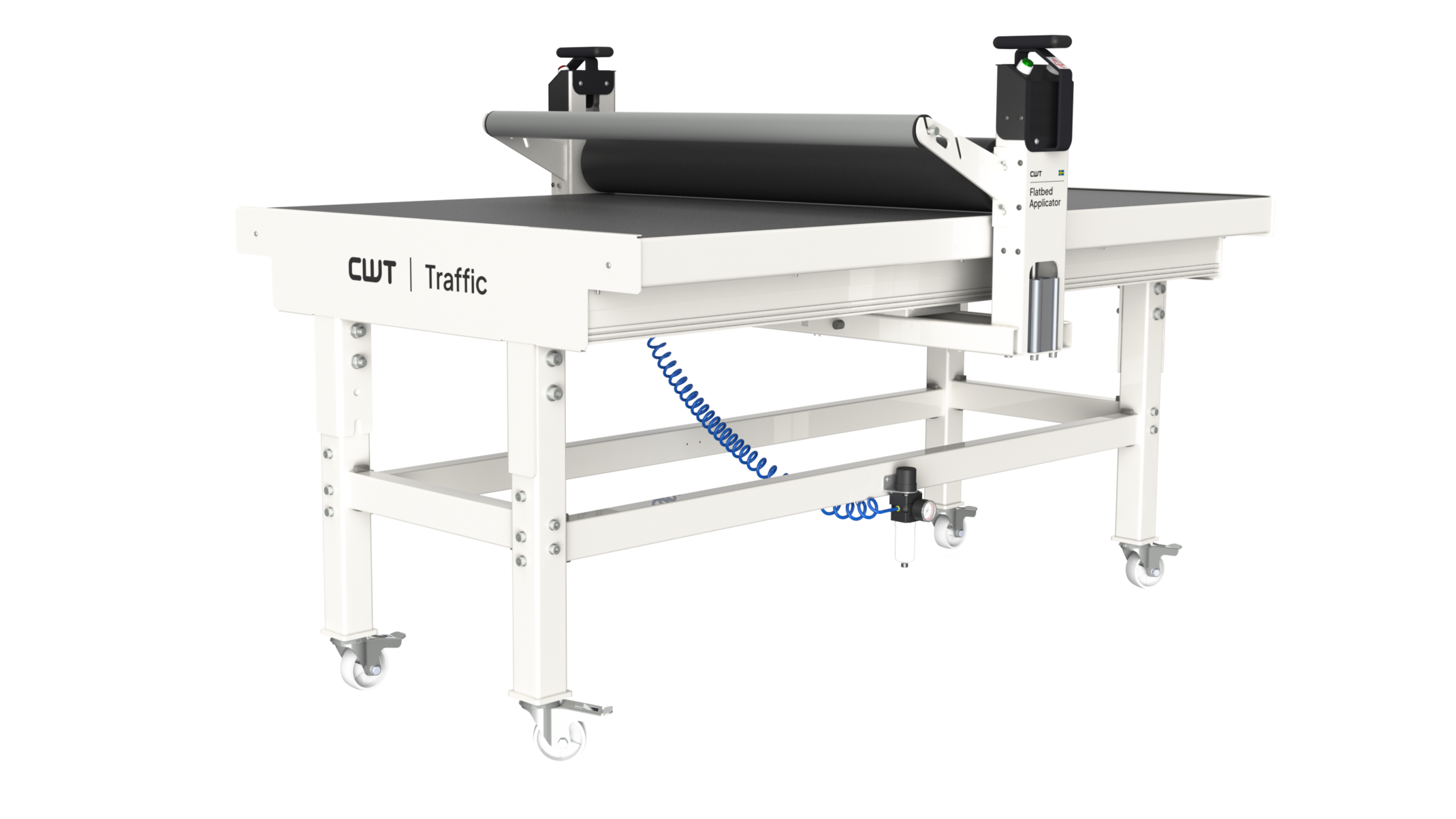

CWT 1016 Traffic

Precision for regulatory and smaller traffic signs The CWT 1016 Traffic is developed for road sign manufacturers producing regulatory and smaller format traffic signs on rigid aluminium panels. Equipped with a seamless, high strength composite work surface, it provides the rigidity required for controlled reflective sheeting and overlay film application. The robust worktable supports consistent roller pressure and a controlled application process, helping standardise production across operators and shifts. Its compact footprint makes it well suited for workshops where precision, repeatability and efficient use of space are essential. Built on the proven CWT flatbed applicator concept and modular system, the 1016 Traffic delivers controlled, dependable performance in everyday traffic sign manufacturing.

Build yours

Facts & Features

Facts
Part NO
CWT101630
Table length
1640mm (5ft. 4in.)
Table width
990mm (3ft. 3in.)
Length of working area
1340mm (4ft. 5in.)
Width of working area/roller
950mm (3ft. 1in.)
Overall width
1195mm (3ft. 11in.)
Max thickness of substrate
0-50mm (0-2in.)
Work height
795 - 895mm (2ft. 7in. - 2ft. 9in.)
Work height adjustement
Manual
Bed surface
Composite Board
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Packing dimensions
1400 x 550 x 1900mm (4ft. 7in. x 1ft. 10in. x 6ft. 4in.)
Warranty
3 years

Features

ROLL HOLDER FOR GLIDE BEAM

Yes

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

SILENT COMPRESSOR

Option
