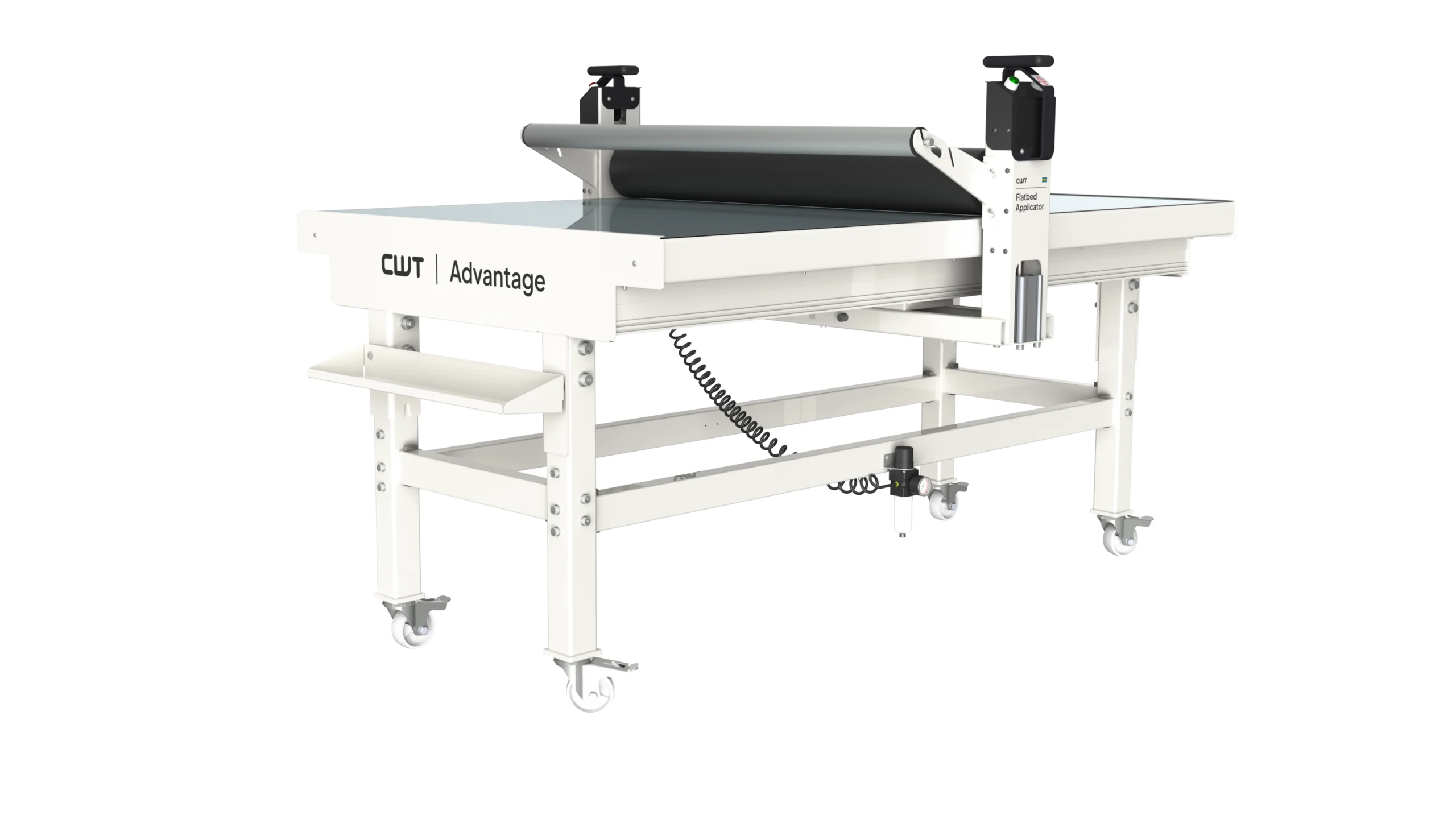

CWT 1016 Advantage Flatbed Applicator

Our smallest flatbed applicator, yet still a robust production machine. The CWT Advantage Series is our compact flatbed applicator for sign shops, franchises and road sign manufacturers working in limited space or taking their first step into flatbed production. It delivers the core functionality needed for everyday sign making and regulatory road sign production, even in narrow or space-restricted environments. Despite its small footprint, the Advantage Series offers dependable results, selectable pre-set working height, optional LED light and flat-packed delivery – giving growing businesses professional access to reliable flatbed technology at an accessible budget level. Tomorrow’s production, made simple.

Build yours

Facts & Features

Facts
Part NO
CWT 101610
Table length
1640mm (5ft. 4in.)
Table width
990mm (3ft. 3in.)
Length of working area
1340mm (4ft. 5in.)
Width of working area/roller
950mm (3ft. 1in.)
Overall width
1195mm (3ft. 11in.)
Max thickness of substrate
0-50mm (0-2in.)
Work height
795 - 895mm (2ft. 7in. - 2ft. 9in.)
Work height adjustement
Manual
Bed surface
Safety glass + Cutting mat
Power supply
230V/50Hz (10A) or 120V/60Hz (15A)
Required air supply
6-8bar (87-116psi)
Net weight
175kg (386lbs)
Gross weight
240kg (529lbs)
Packing dimensions
1400 x 550 x 1900mm (4ft. 7in. x 1ft. 10in. x 6ft. 4in.)
Warranty
3 years

Features

CUTTING MAT, SELF HEALING

Yes

CWT LIGHT, ILLUMINATED WORKTABLE

Yes

ROLL HOLDER FOR GLIDE BEAM

Yes

ROLL CRADLE 450, ROLL HOLDER FOR TABLE TOP

Option

SILENT COMPRESSOR

Option

CWT CUT

Option
Documents
Solid gray color

Data Sheet CWT 1016 Advantage 2026-03
